Orbit Breach: Solving Line and Circle Systems

A straight path can slice through a circular orbit at two points, graze it once, or miss it completely — algebra can tell you which before you even sketch it.

Grade 10Geometry / Algebra 2

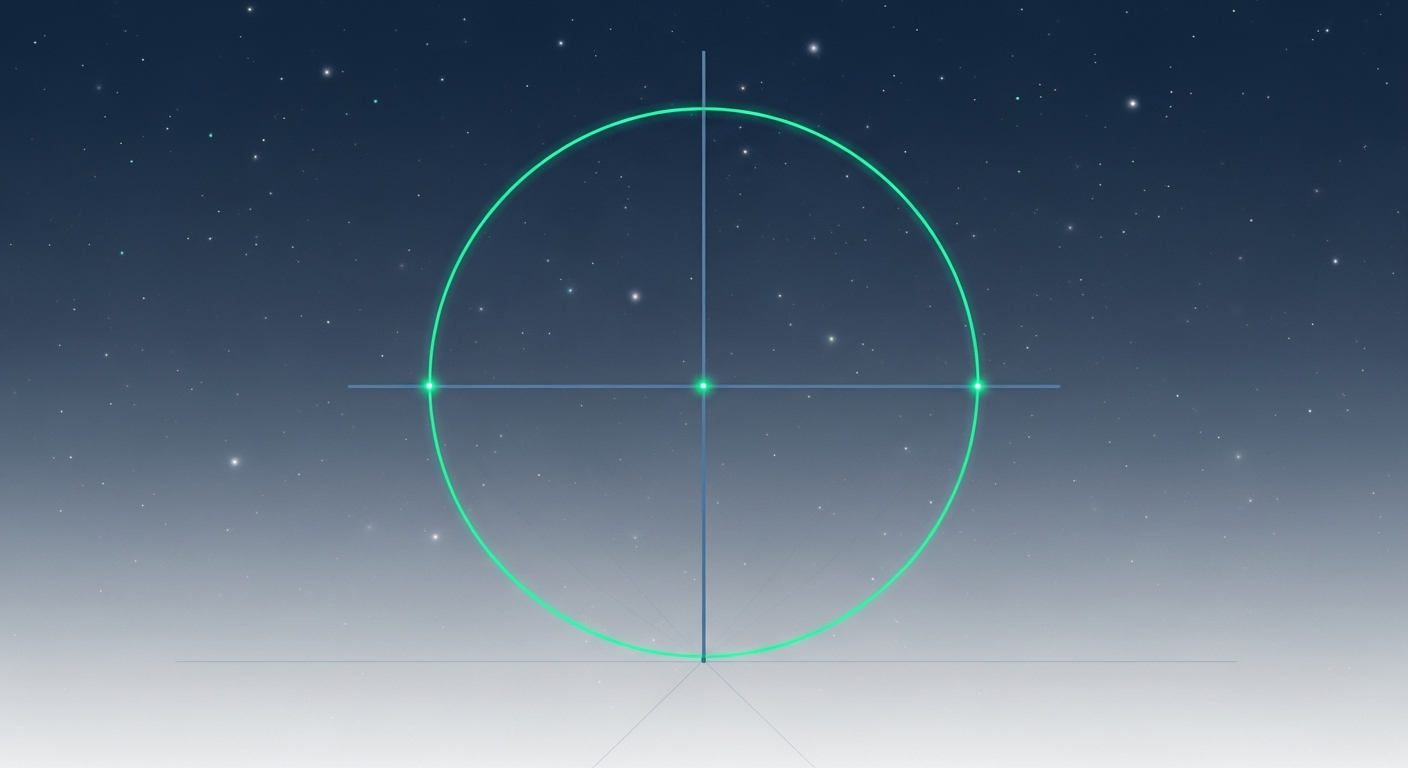

Orbit Breach: Solving Line and Circle Systems — illustration

💡

The big idea: Substituting a line's equation into a circle's equation collapses the system into a single quadratic equation. Solving that quadratic finds the intersection points, and its discriminant reveals — without solving anything further — whether the line crosses the circle twice, touches it once, or misses it entirely.

🎯 By the end, you'll be able to

Substitute a linear equation into a circle equation to form a quadratic
Solve the resulting quadratic to find the intersection point(s)
Use the discriminant to determine the number of intersection points
Interpret the three cases geometrically: secant, tangent, and no intersection

📎 You should already know

Equation of a circle, (x−h)² + (y−k)² = r²
Solving quadratic equations and the discriminant

Finding the centre and radius

The circle formula (x−h)² + (y−k)² = r² is easy to read — centre (h, k), radius r — but circles don't always arrive in that tidy form. An equation like x² + y² − 6x + 4y − 12 = 0 is the same circle, just expanded and rearranged, and its centre and radius are hidden inside it. To recover them, you group the x-terms together, group the y-terms together, and complete the square on each group separately — the same technique from the completing-the-square lesson (grade9__square), just applied twice in one equation.

📝 Worked example: Find the centre and radius of the circle x² + y² − 6x + 4y − 12 = 0.

Group the x-terms and y-terms, moving the constant to the other side: (x² − 6x) + (y² + 4y) = 12.
Complete the square on the x-group: half of −6 is −3, squared is 9, so add 9 to both sides: (x² − 6x + 9) + (y² + 4y) = 12 + 9.
Complete the square on the y-group: half of 4 is 2, squared is 4, so add 4 to both sides: (x² − 6x + 9) + (y² + 4y + 4) = 21 + 4.
Rewrite each group as a perfect square: (x − 3)² + (y + 2)² = 25.

✓ The circle has centre (3, −2) and radius 5 (since 25 = 5²).

Two equations, one intersection

A circle and a line are each described by their own equation. To find where — if anywhere — they cross, you solve both equations simultaneously. The standard trick: solve the line for y (or x), and substitute that expression directly into the circle's equation, replacing y everywhere it appears.

\[ (x-h)^2 + (y-k)^2 = r^2 \]

The circle's equation. Substituting y = mx + c from a line turns this into a single quadratic in x.

🔑 The discriminant tells you the count before you finish solving

After substitution you get a quadratic Ax² + Bx + C = 0. Its discriminant B² − 4AC tells you everything: positive means two intersection points (a secant line), zero means exactly one (a tangent line), and negative means the line misses the circle entirely.

🎮 Orbit Breach LIVE

Intersect a line with a circle: two points, one tangent, or none.

The method, step by step

Substitute the line into the circle, expand, and collect everything on one side to get Ax² + Bx + C = 0. Solve for x (factoring, or the quadratic formula), then plug each x-value back into the line's equation to get the matching y-value. Each (x, y) pair is one intersection point.

📝 Worked example: Find where the line y = x + 1 meets the circle x² + y² = 25.

Substitute y = x + 1 into the circle: x² + (x + 1)² = 25.
Expand: x² + x² + 2x + 1 = 25, so 2x² + 2x − 24 = 0, i.e. x² + x − 12 = 0.
Factor: (x + 4)(x − 3) = 0, so x = −4 or x = 3.
Back into the line: x = −4 gives y = −3; x = 3 gives y = 4.

✓ Two intersection points: (−4, −3) and (3, 4). Both satisfy x² + y² = 16 + 9 = 25 and 9 + 16 = 25. ✓

📝 Worked example: Find where the line y = x + 4 meets the circle x² + y² = 8.

Substitute: x² + (x + 4)² = 8.
Expand: x² + x² + 8x + 16 = 8, so 2x² + 8x + 8 = 0, i.e. x² + 4x + 4 = 0.
Factor: (x + 2)² = 0, a repeated root, so x = −2 only.
Back into the line: y = −2 + 4 = 2.

✓ The discriminant is 4² − 4(1)(4) = 0, so the line is tangent, touching the circle at the single point (−2, 2).

✨ When the line misses entirely

For circle x² + y² = 1 and line y = x + 5, substitution gives 2x² + 10x + 24 = 0, or x² + 5x + 12 = 0 after dividing by 2. Its discriminant is 5² − 4(1)(12) = 25 − 48 = −23 — negative, with no real solutions. The line sails past the circle without ever touching it.

⚠️ Don't stop at x — and remember what a double root means

Finding x is only half the job: substitute each x back into the line's equation to get its matching y. And a repeated (double) root is not “no solution” — it means exactly one intersection point, where the line is tangent to the circle.

Check your understanding

1. To find where a line intersects a circle algebraically, you should:

Substitution eliminates one variable, turning the system into a single quadratic you can solve directly.

2. For circle x²+y²=25 and line y=x+1, substitution simplifies to (x+4)(x−3)=0. How many points does the line intersect the circle at?

Two distinct roots, x = −4 and x = 3, each give a valid intersection point.

3. A line meets a circle so that the resulting quadratic has a discriminant of 0. What does this mean?

A zero discriminant means a repeated root — one x-value, one intersection point — which is exactly what happens when a line is tangent.

4. For circle x²+y²=8 and line y=x+4, substitution gives (x+2)²=0. What point does the line touch the circle at?

x = −2, and substituting into the line y = x + 4 gives y = 2, so the tangent point is (−2, 2).

5. A discriminant that comes out negative means:

A negative discriminant means the quadratic has no real roots, so the line and circle never meet.

6. Completing the square on x² + y² − 6x + 4y − 12 = 0 gives (x − 3)² + (y + 2)² = 25. What are the centre and radius?

In (x−h)² + (y−k)² = r², the signs inside the parentheses are flipped from h and k, so (x−3)² + (y+2)² = 25 gives centre (3, −2) and radius √25 = 5.

✅ Key takeaways

Substituting a line's equation into a circle's equation produces a single quadratic in one variable.
Solve that quadratic for x, then use the line's equation to find each matching y.
The discriminant of the resulting quadratic tells you the number of intersections without extra work.
Positive discriminant: two points (secant). Zero: one point (tangent). Negative: no intersection.
A repeated (double) root is not 'no solution' — it's exactly one tangent point.
